Sodium Bicarbonate Powder Grinding
Daswell sodium bicarbonate grinding line provides ultrafine powder preparation for dry FGD and DSI systems. It features precise particle size control, high reactivity, stable operation, and direct integration with flue gas treatment processes.
Sodium bicarbonate (NaHCO₃) is also known as bicarbonate of soda. It is an important alkaline material, which is widely used in sodium bicarbonate dry sorbent injection (SDS) systems and dry flue gas desulfurization (Dry FGD) applications. It is one of the most effective dry sorbents for industrial flue gas treatment. You can use it for removing acidic pollutants such as sulfur dioxide (SO₂), hydrogen chloride (HCl), hydrogen fluoride (HF), and sulfur trioxide (SO₃).
For improving the reaction efficiency with acidic gases, the sodium bicarbonate needs to be processed into fine powder with controlled particle size, high specific surface area, and excellent reactivity. Finer particles provide a much larger reaction surface, enabling faster neutralization of acidic gases while reducing sorbent consumption.
Daswell Powder sodium bicarbonate powder grinding line is designed for industrial air pollution control. This grinding line utilizes advanced ultrafine grinding technology. It mainly adopts a horizontal ultrafine grinding mill, which integrates grinding and air classification in one compact system. It is applicable for you to adjust the classifier wheel speed and get your required particle size precisely. With our sodium bicarbonate powder grinding line, you can get uniform powders with high grinding efficiency in less space.

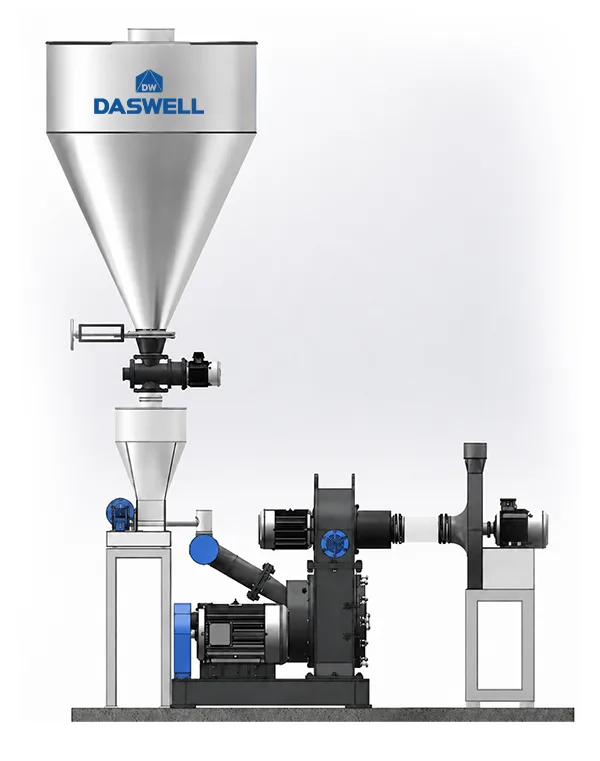

Sodium Bicarbonate Powder Grinding Process

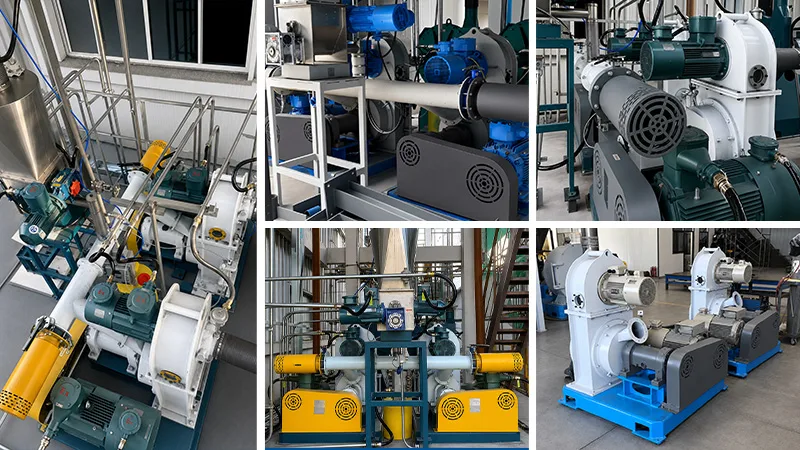

For sodium bicarbonate powder preparation, Daswell Powder adopts a horizontal air classifying mill as the core equipment of the sodium bicarbonate grinding system. The whole grinding line includes feeding, grinding, and air classification, and direct pneumatic conveying to the flue gas injection system. With this set of grinding line, you can produce sodium bicarbonate powder with the required particle size and high reactivity for your efficient acid gas removal.
Raw Material Feeding
There is a controlled feeding system for feeding sodium bicarbonate raw materials into the horizontal grinding mill evenly. The stable feeding ensure the consistency of final powder quality.
Powder Grinding and Air Classification
When the sodium bicarbonate material enters the grinding chamber, sodium bicarbonate particles are rapidly reduced by high-speed impact and shear forces. The ground fine powders are separated by the built-in classifier wheel. The coarse particles are automatically returned to the grinding zone for further grinding. You can adjust the rotation speed of the classifier wheel to control particle size. This integrated grinding and classification design helps achieve a narrow particle size distribution and stable product quality.
| Model | Grinding | Classifying | Fan | |||||
| Disc Diameter(mm) | Disc Speed(rpm) | Rotor Tip Speed(m/s) | Power(kw) | Wheel Diameter(mm) | Wheel Speed(rpm) | Power(kw) | Air Volume(m³/h) | |
| DPS310 | 310 | 5600 | 110 | 11 | 140 | 6000 | 3 | 800 |
| DPS410 | 410 | 4700 | 110 | 22 | 200 | 5000 | 4 | 1600 |
| DPS510 | 510 | 4100 | 110 | 30 | 260 | 4000 | 5.5 | 2700 |
| DPS610 | 610 | 3500 | 110 | 37 | 315 | 3600 | 7.5 | 3500 |
| DPS810 | 810 | 2400 | 110 | 55 | 400 | 2800 | 11 | 5500 |
| DPS1000 | 1000 | 2100 | 110 | 90 | 500 | 2000 | 18.5 | 7800 |
| DPS1200 | 1200 | 1760 | 110 | 132 | 630 | 1400 | 30 | 11000 |
Direct Pneumatic Conveying
The qualified sodium bicarbonate powder is pneumatically conveyed directly to the injection lances of the DSI systems. The ultrafine powder is injected into the flue gas duct. Then the sodium bicarbonate is thermally activated in the high-temperature flue gas and quickly reacts with acidic pollutants such as SO₂, HCl, HF, and SO₃, achieving highly efficient flue gas purification while minimizing sorbent consumption.
This sodium bicarbonate grinding system features low dust emission, high automation, and stable operation. It provides a reliable supply of fine sodium bicarbonate powder for direct integration with DSI systems and efficient industrial flue gas treatment. If you are planning to establish your own sodium bicarbonate powder grinding line for your plant, send an inquiry to us. We can design for you.
Main Applications of Sodium Bicarbonate Powder Grinding Line
The main application of fine sodium bicarbonate powder is in industrial flue gas treatment systems. It is widely applied in industries, which need efficient acid gas removal and compliance with increasingly stringent emission standards.

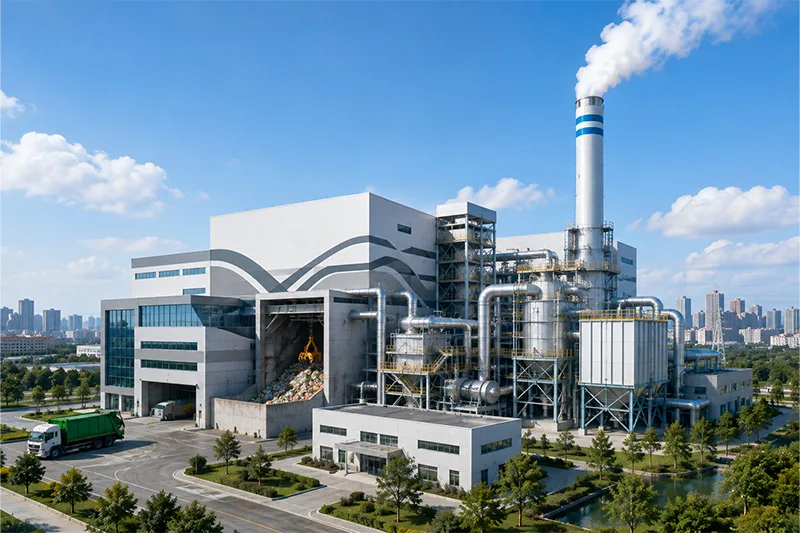

Municipal Solid Waste (MSW) Incineration
Municipal waste incinerators generate flue gases containing SO₂, HCl, HF, and other acidic pollutants.
The finely ground sodium bicarbonate powder reacts rapidly with these gases. It helps plants achieve high removal efficiency while reducing sorbent consumption.

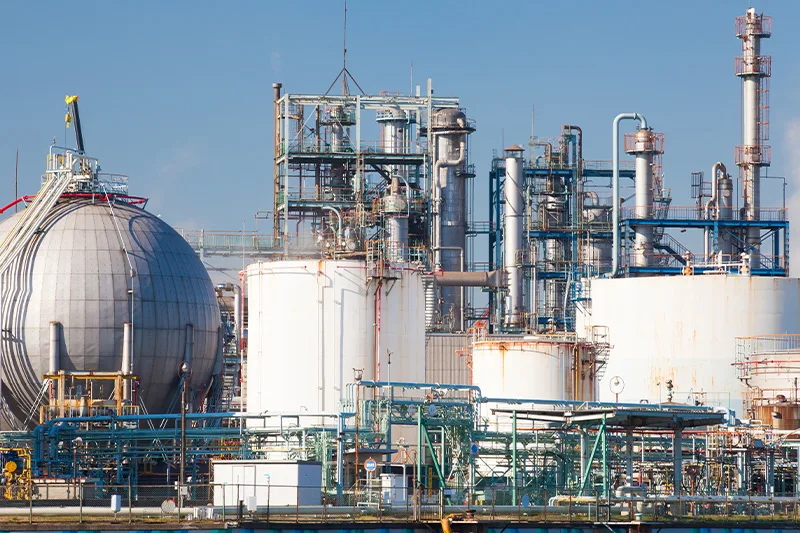

Hazardous Waste Incineration
The hazardous waste treatment facilities often process waste streams with higher concentrations of acidic gases.
Fine sodium bicarbonate powder can provide fast neutralization. It is suitable for demanding emission control applications.

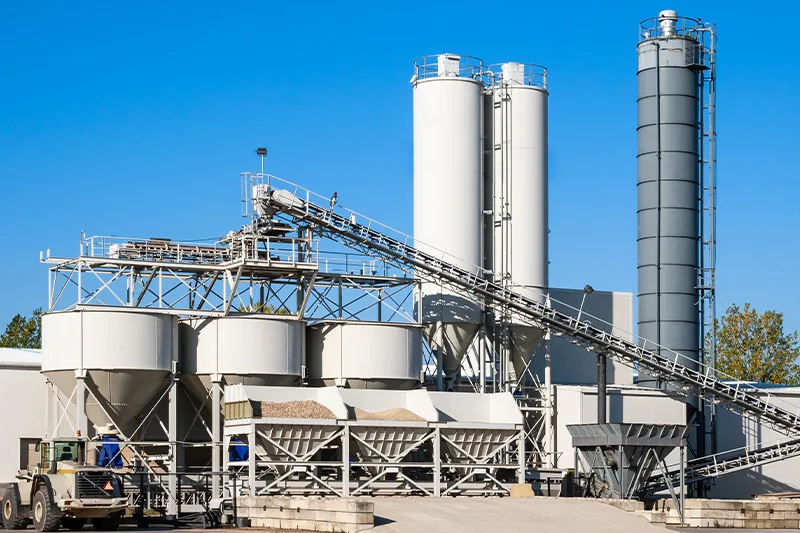

Cement Plants
During cement production, kiln operations may generate acidic gas emissions.
Sodium bicarbonate dry injection systems offer an effective solution for reducing SO₂ and HCl emissions.

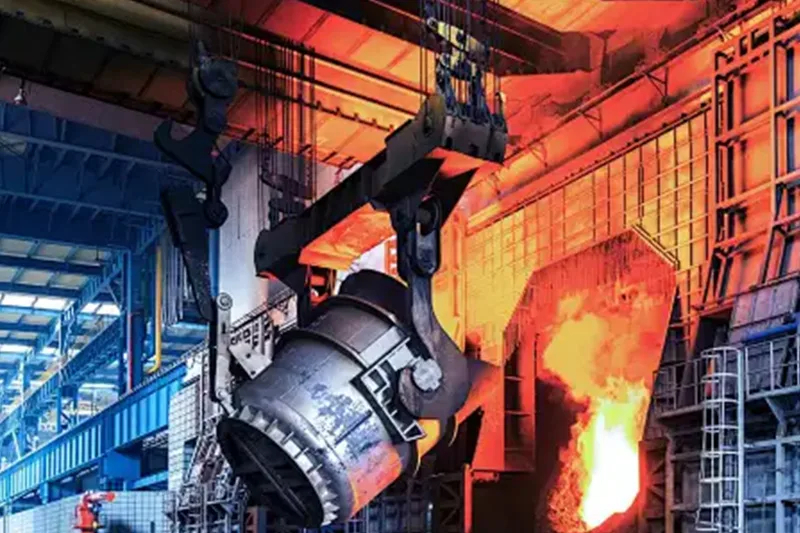

Steel and Metallurgical Plants
In sintering plants, coke ovens, and other metallurgical processes, flue gases may be generated containing sulfur compounds and acidic pollutants.
Fine sodium bicarbonate powder improves reaction efficiency and helps steel manufacturers meet environmental regulations.

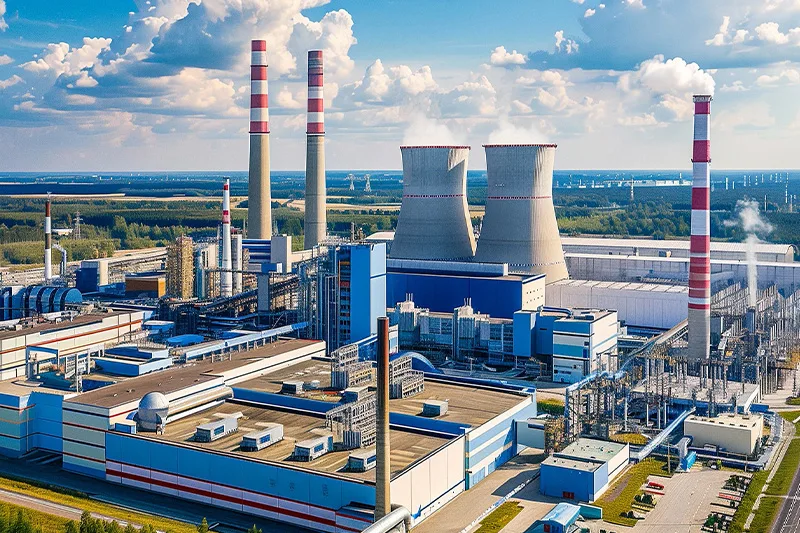

Glass and Chemical Plants
Glass melting furnaces and chemical manufacturing processes also require effective flue gas purification.
Ultrafine sodium bicarbonate powder provides high reactivity and consistent performance for industrial emission control.

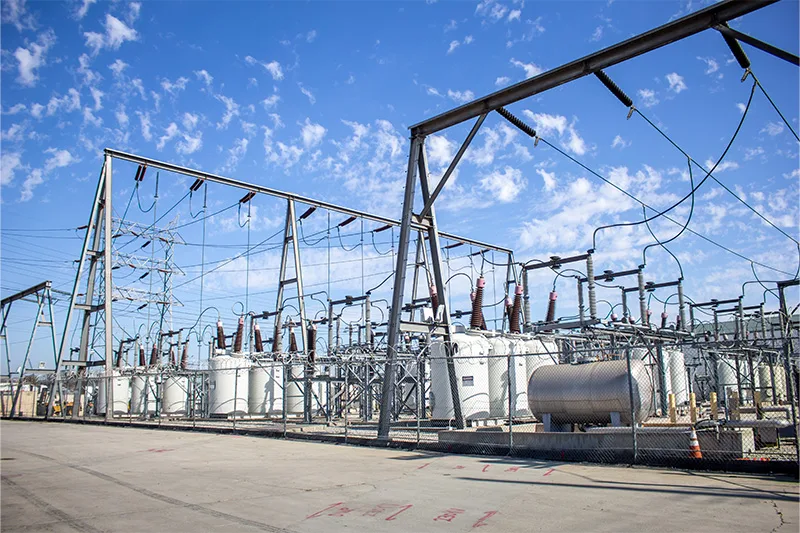

Coal-fired and Biomass Power Plants
Power plants use sodium bicarbonate injection systems to control sulfur dioxide and other acidic gases in flue gas.
Fine powder with controlled particle size ensures efficient utilization of the sorbent and stable operation.
For your dry FGD and DSI projects, Daswell Powder can provide a customized sodium bicarbonate grinding solution based on your required capacity, particle size, and flue gas treatment requirements. Just contact us to discuss your project and get a reliable sodium bicarbonate powder grinding line.
