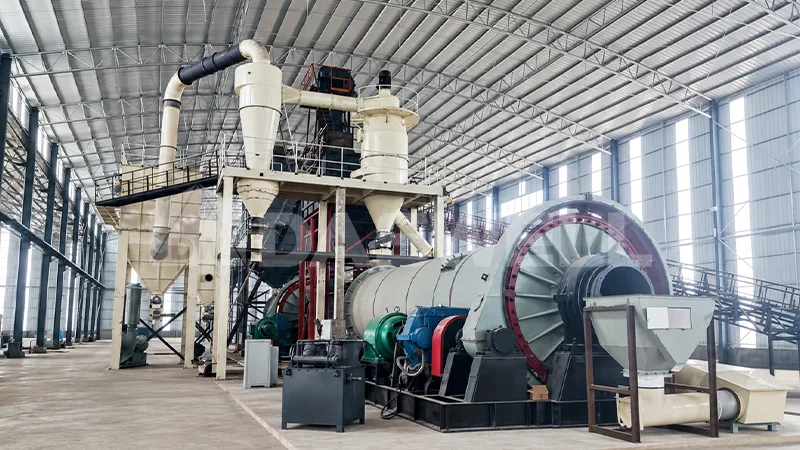

Alumina Powder Processing Line
Our alumina powder processing line is designed for producing fine and ultrafine alumina powder with stable particle size control. It is suitable for refractory materials, technical ceramics, thermal conductive fillers, grinding materials, and other industrial applications.
The turnkey system integrates crushing, grinding, classification, surface modification (optional), dust collection, and packing for efficient and reliable alumina powder production.
Alumina Powder Processing Challenges
Alumina powder is widely used in various fields, including refractory materials, technical ceramics, thermal conductive fillers, industrial grinding and polishing materials, catalyst carrier materials, and ceramic coating materials for some lithium battery applications.
Compared with common non-metallic minerals such as quartz and calcite, alumina has higher hardness and wear resistance. The Mohs hardness of corundum alumina can reach 9. For high-hardness alumina materials, using ordinary steel grinding media or steel liners for a long time may accelerate equipment wear and increase the risk of metal impurities such as iron entering the powder.
During alumina powder processing, the equipment should not only meet the required fineness but also consider grinding efficiency, wear resistance, and powder purity.
Daswell Powder’s alumina powder processing line(alumina powder production line/alumina grinding plant) is specially designed for stable production of fine and ultrafine alumina powder, providing optimized grinding and classifying solutions according to different customer requirements.
Alumina Powder Processing Flow
Alumina Raw Material → Crushing → Grinding → Classification → Surface Modification (Optional) → Packing
(The actual equipment configuration should be designed according to raw material conditions, product requirements, and application fields.)
1. Raw Material Preparation Process
The particle size and shape of alumina raw materials directly affect the following grinding process.
For example:
- Large-sized materials such as fused alumina and sintered alumina blocks usually require crushing before grinding;
- Pre-processed alumina powder may directly enter the grinding and classification system.
Common crushing equipment includes:
2. Grinding Process
During alumina powder grinding, the grinding system directly affects the final product fineness, purity, and production cost.
Because alumina has high hardness and strong abrasiveness, ordinary steel balls and steel liners may wear quickly when processing this material for a long time. This may also increase the risk of iron contamination.
Therefore, for alumina powder applications that require strict control of metal impurities, a ceramic-lined ball mill system is usually adopted.
Daswell Powder can configure a ceramic-lined ball mill according to customer requirements to reduce the risk of iron contamination, improve wear resistance, and ensure stable operation.
3. Classification Process
The classifier determines the particle size control capability and particle size distribution stability of alumina powder.
According to customer requirements, Daswell Powder can configure a precision Air Classifier for alumina powder processing.ceramic-lined ball mill system

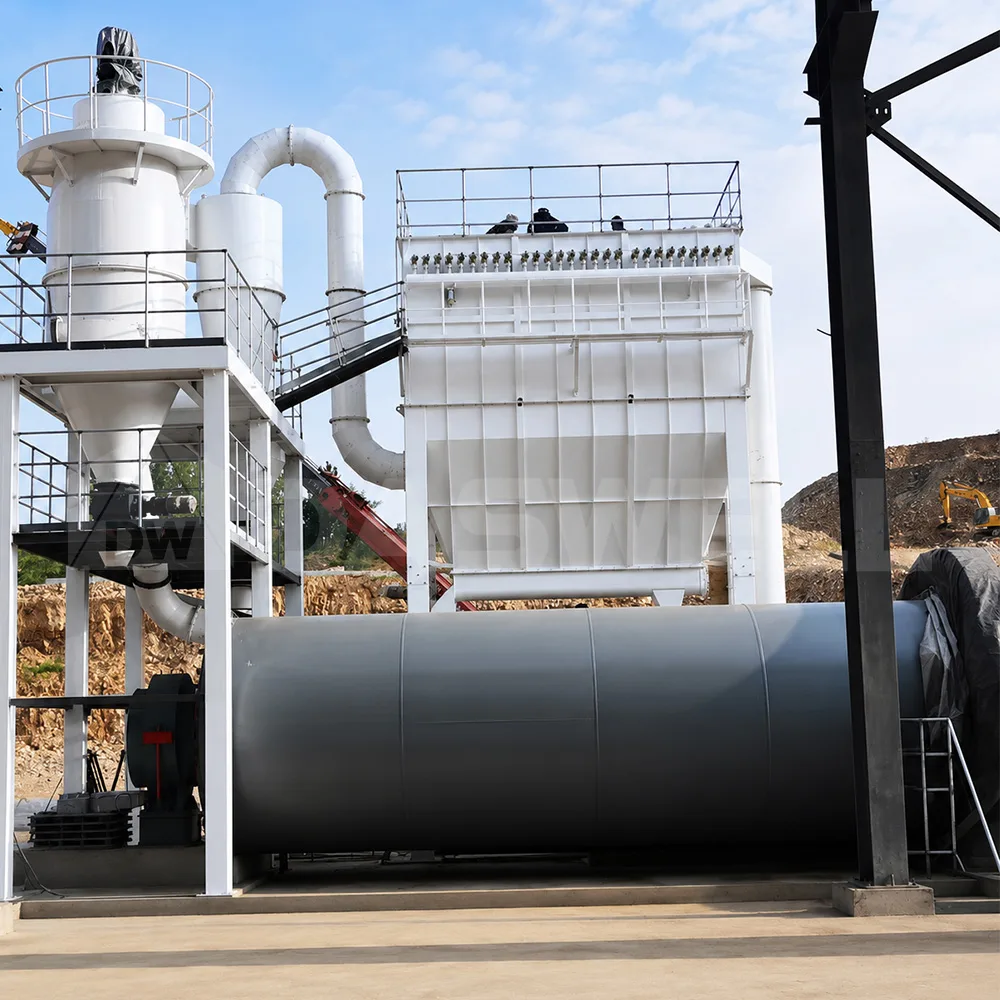

Vertical Classifier for Alumina Powder Processing
For alumina powder production, the classifying system plays an important role in controlling particle size distribution and ensuring stable product quality.
Daswell Powder can provide a vertical classifier for alumina powder processing. Equipped with a large-diameter classification wheel, the vertical classifier offers high processing capacity, stable operation, and efficient particle separation.
Compared with multi-rotor classifiers, the vertical classifier features a simpler structure, lower investment cost, and lower power consumption, making it suitable for continuous alumina powder production.
Key benefits:
- High processing capacity with a large-diameter classification wheel;
- Stable particle size control for consistent alumina powder quality;
- Lower investment and operating costs;
- Reliable operation for long-term continuous production.
The Vertical Classifier is suitable for alumina powder applications that require stable classification performance, such as refractory materials, technical ceramics, and industrial powder processing.

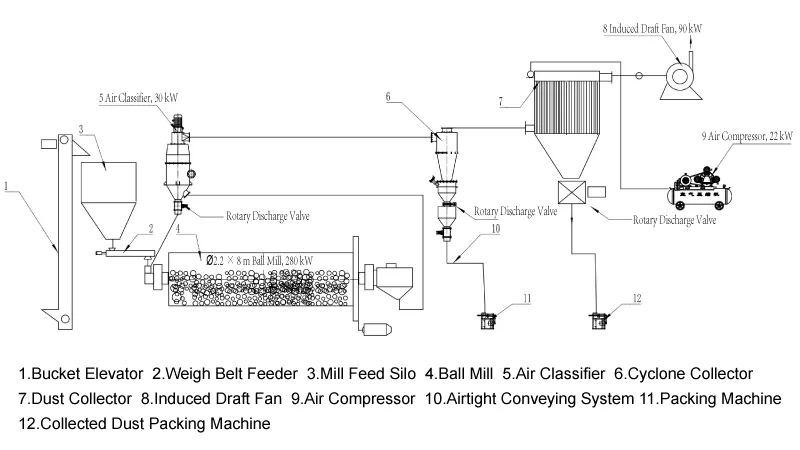

Ball Mill + Vertical Classifier for Alumina Powder Processing
This system is suitable for:
- Alumina powder for refractory materials;
- Alumina powder for technical ceramics;
- Some high-purity alumina powder applications;
- Industrial grinding and polishing materials.
According to raw material characteristics, target particle size, and production capacity requirements, other ultrafine grinding equipment can also be selected.
4. Surface Modification Process
For some special applications, such as thermal conductive fillers, electronic packaging materials, and functional composite materials, meeting the fineness requirements of alumina powder may not be enough.
Daswell Powder can provide powder surface modification equipment according to customer requirements to achieve functional treatment of alumina powder.
5. Packing Process
Qualified powder is collected through the cyclone collector and dust collector, and then transported to the finished product silo and packing equipment.
The complete system adopts enclosed conveying and negative pressure dust collection design, which helps reduce dust leakage, improve the cleanliness of the production environment, and minimize the risk of secondary contamination during transportation.
Applications of Alumina Powder
Alumina powder is widely used in various industries. Daswell Powder provides customized processing solutions according to different powder requirements and application conditions.

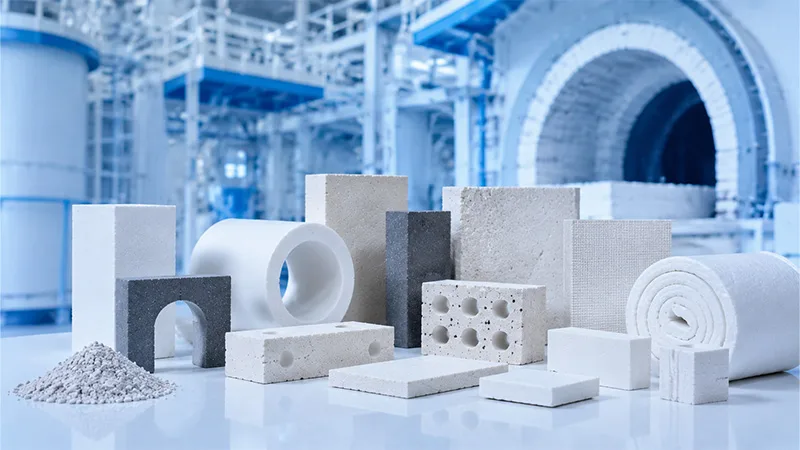

Refractory Materials
Alumina powder is widely used in refractory materials due to its excellent high-temperature resistance and wear resistance.
Daswell Powder provides stable grinding and classification solutions to produce alumina powder with suitable fineness and consistent quality.

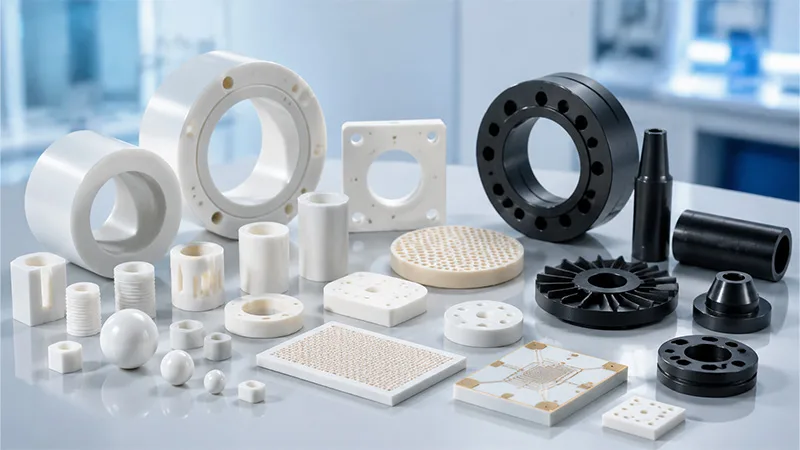

Technical Ceramics
Technical ceramics require alumina powder with controlled particle size distribution, high purity, and stable quality.
Daswell Powder’s grinding and classification systems help achieve consistent powder performance for different ceramic applications.

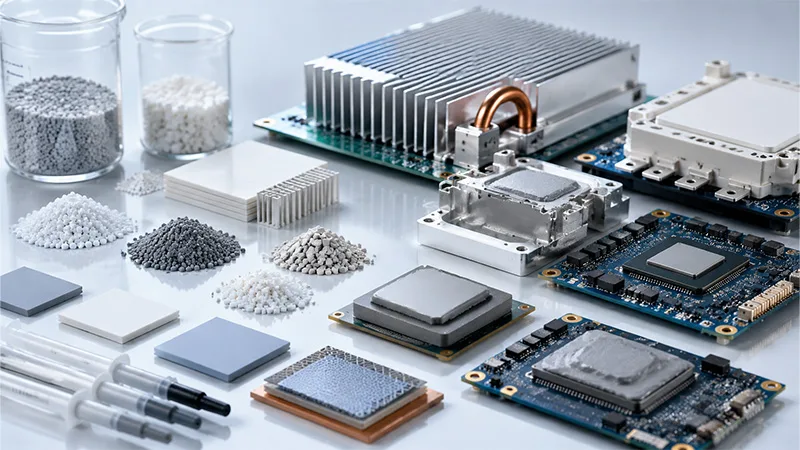

Thermal Conductive Fillers and Electronic Packaging
Alumina powder is used in thermal conductive composite materials due to its thermal conductivity and electrical insulation properties.
Grinding, classification, and surface modification processes can help improve powder performance and compatibility with composite materials.

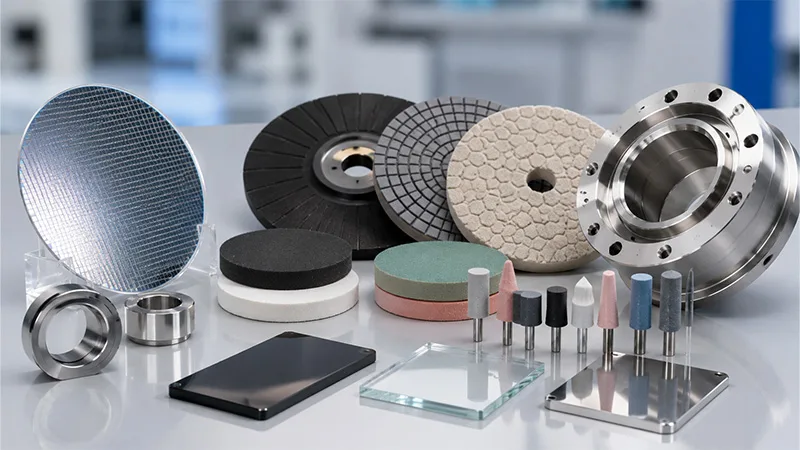

Grinding and Polishing Materials
Due to its high hardness, alumina powder is also used for industrial grinding and polishing applications.
Daswell Powder can provide suitable powder processing solutions according to different particle size and purity requirements.
How Does Daswell Powder Customize Alumina Powder Processing Solutions?
Different customers have different requirements for alumina powder production due to differences in raw materials, target applications, and product performance requirements. Daswell Powder designs customized processing solutions based on specific production needs.
| Application | Main Requirements | Recommended Focus |
|---|---|---|
| Refractory Materials & General Ceramics | Stable capacity, equipment reliability, economical operation | Efficient grinding and stable classification |
| High-Purity Alumina Powder | Low impurity level, stable particle size, wear resistance | Ceramic-lined grinding system and precise classification |
| Thermal Conductive Fillers | Fine particle size, good dispersibility, surface modification | Grinding, classification, and surface modification |
Daswell Powder considers the following factors when designing an alumina powder processing solution:
- Raw material type;
- Raw material particle size;
- Required product fineness;
- Production capacity;
- Powder purity requirements;
- Final application requirements.
By properly configuring crushing, grinding, classification, surface modification, and packing systems, Daswell Powder provides complete alumina powder processing solutions.
Contact Daswell Powder
Daswell Powder focuses on non-metallic mineral and industrial powder processing equipment, providing complete solutions from process design to equipment delivery.
If you are looking for a customized alumina grinding plant solution, please feel free to contact Daswell Powder.
