If you want faster powder production, finer powder quality, and lower operating costs, the first step is choosing a powerful crushing machine. DaswellPowder jaw crusher provides an excellent start for your powder processing business. It can crush the large rocks into a small size, which is applicable for your grinding mill machine.

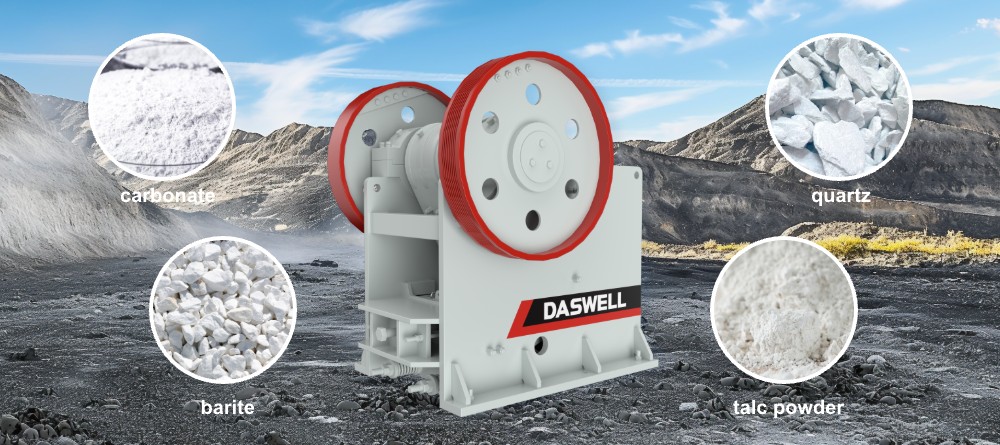

Whether you produce calcium carbonate, quartz, barite, or talc powder, Daswell Powder jaw crushing equipment helps you improve productivity and stay competitive in the market.

Choosing DaswellPowder jaw crushing solution for your powder processing plant, you can unlock the full performance of your grinding system.

Working principle

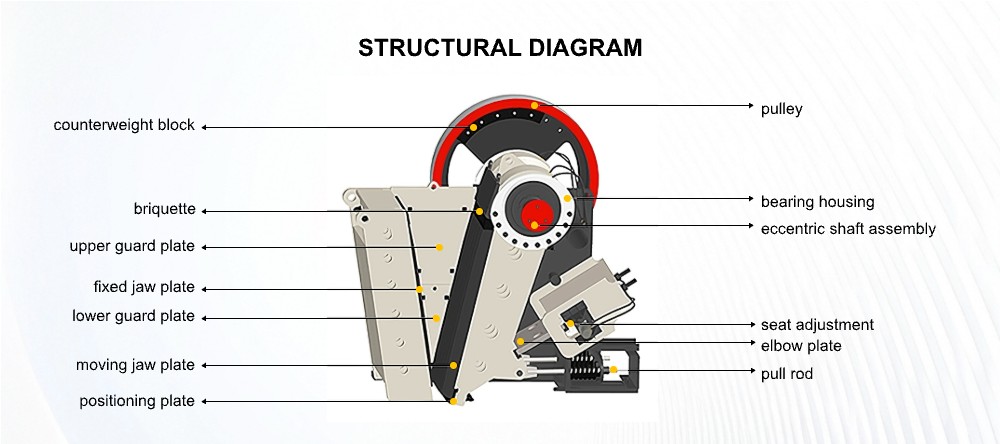

The jaw crusher works through a driving-extrusion mechanism. It crushes materials between a fixed jaw plate and a movable jaw plate. The machine consists of a frame, eccentric shaft, bearing, flywheel, toggle plate, and high-manganese jaw plates.

• There are a fixed jaw plate and a movable jaw plate inside the machine. They form a deep crushing cavity. The stone materials can enter for primary size reduction.
• The motor will drive the pulley, which rotates the eccentric shaft. This motion causes the movable jaw to rise and fall in a repeated cycle.
• When the movable jaw moves upward, it approaches the fixed jaw. The cavity will be narrower. Then the materials will be squeezed, compressed, and crushed under high pressure.
• When the movable jaw moves downward, it moves away from the fixed jaw, the cavity will be wider. The crushed particles, which is smaller than the discharging opening, will fall out naturally by gravity.

This continuous cycle of feeding, compressing, and discharging enables the jaw crusher to achieve efficient and uniform primary crushing for various hard materials. Most of our customers choose our jaw crushing equipment as the primary crushing machine for powder processing plants.

Features

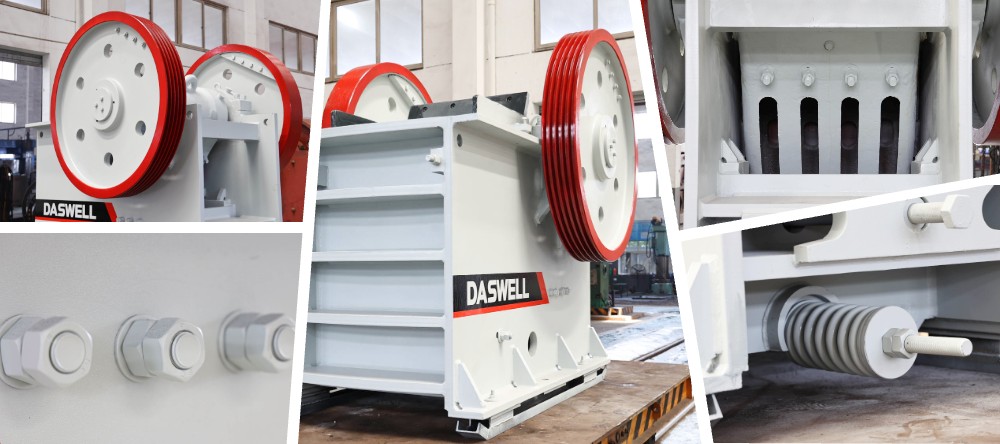

Reinforced structure for stable pre-grinding performance

Our jaw crusher utilizes a heavy-duty frame. This ensures stable operation when preparing raw materials like limestone, calcite, and marble for powder grinding lines.

Large crushing ratio for better grinding efficiency

The jaw crusher has a high crushing ratio and uniform output size. It can produce consistent feed for grinding mills. The adjustable discharge opening helps achieve optimal particle size. This improves milling efficiency and also reduces energy consumption.

Low maintenance and lower processing costs

It has a simple structure and easy-access components. This reduces downtime and maintenance costs. For your powder plant, it ensures continuous feeding and lowers the overall production expenses.

Deep V-type chamber with no dead zone

The deep V-shaped cavity increases feeding capacity and throughput. It can deliver a more stable and sufficient material supply to the grinding mill equipment.

Wide discharge adjustment for powder requirements

It is adjustable for you to control the discharging size. Thus, it meets different pre-grinding sizes. This ensures smoother operation of ball mills, ring roller mills, and the Raymond mill for powder production. Besides, there are also hammer crushing machines for you to use as secondary crushing. It can produce smaller materials than the jaw crusher.

Choose Daswell Powder jaw crusher to build a stronger, more efficient powder production line. Start your powder business with reliable crushing power and achieve higher output and better product quality. Send an inquiry to us now!

Technical Data

Model	Size of Feed opening (mm)	Max. feeding size (mm)	Adjustable Size of Discharge Opening (mm)	Capacity (t/h)	Power (kw)
PE150*250	150*250	125	10-40	1-3	5.5
PE150*750	150*750	125	18-48	8-25	15
PE250*400	250*400	210	20-60	5-20	15
PE400*600	400*600	340	40-100	16-65	30
PE500*750	500*750	425	50-100	45-100	55
PE600*900	600*900	500	65-160	60-160	75
PE750*1060	750*1060	630	80-160	110-320	110
PE800*1060	800*1060	640	130-190	130-330	110
PE900*1200	900*1200	750	95-210	220-450	132
PE1000*1200	1000*1200	850	200-300	280-560	160
PE1200*1500	1200*1500	1020	150-300	400-800	220
PE1500*1800	1500*1800	1200	210-360	520-1100	280
PEX250*750	250*750	210	25-60	13-35	22
PEX250*1000	250*1000	210	25-60	16-52	30
PEX250*1200	250*1200	210	25-60	20-65	37
PEX300*1300	300*1300	210	25-90	30-105	55
